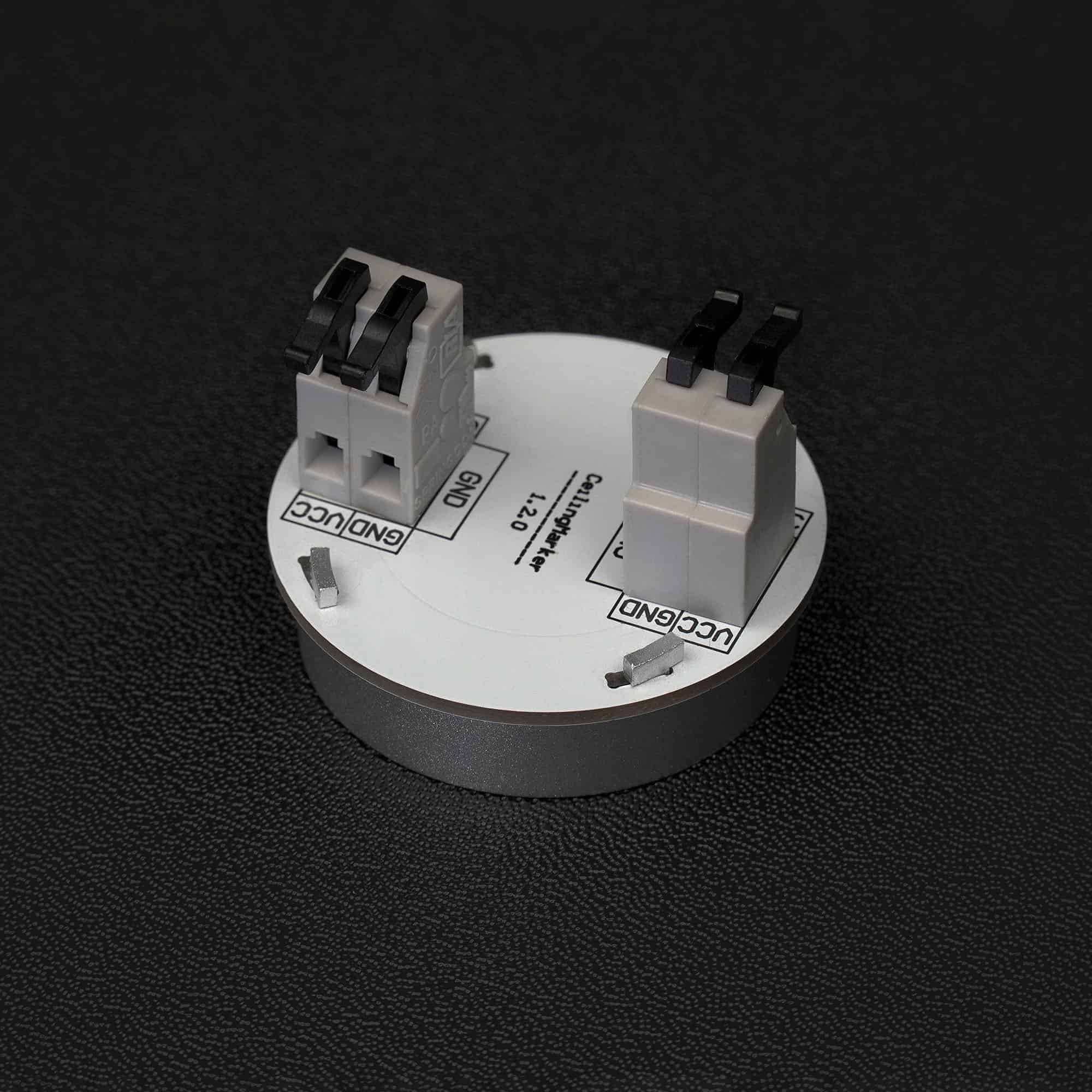

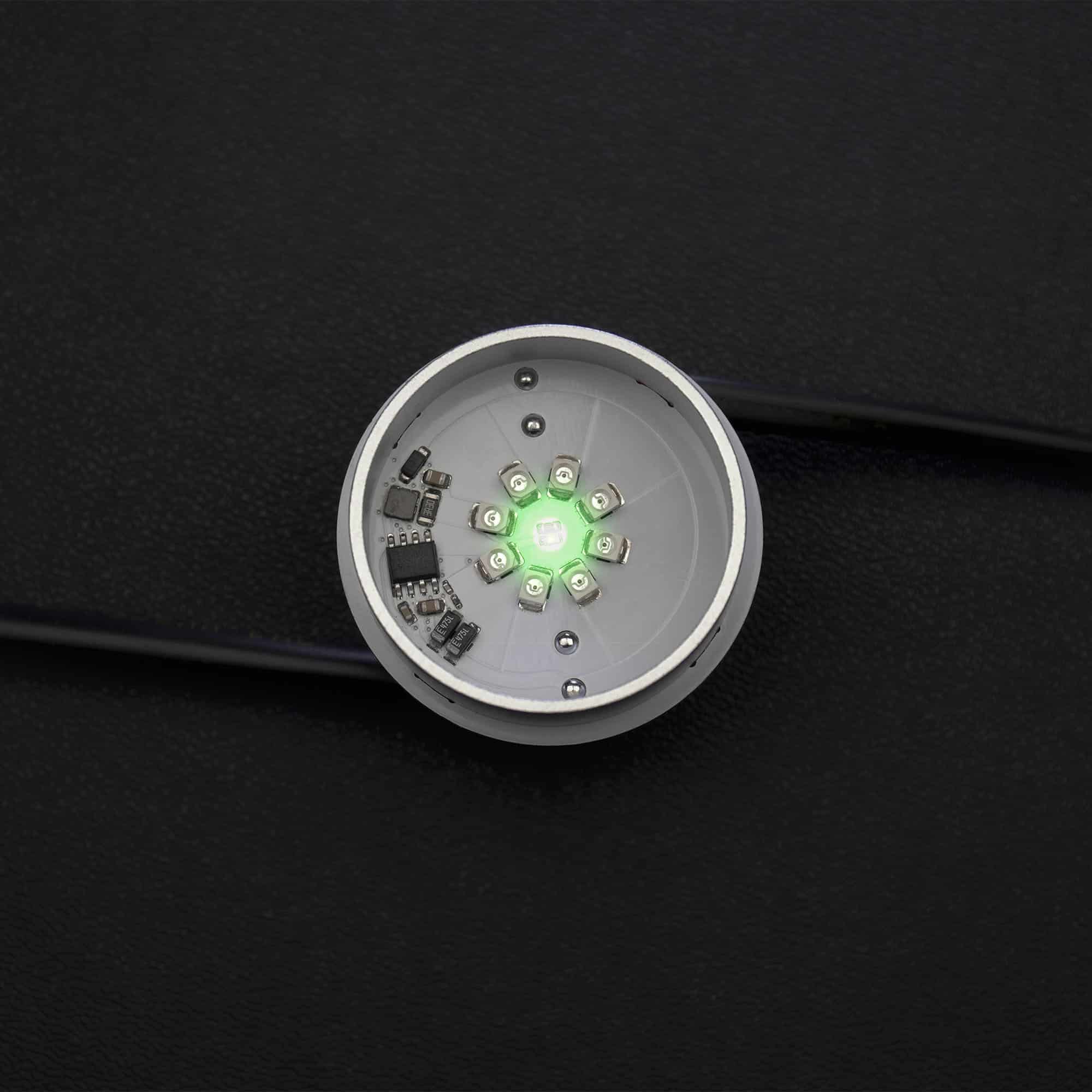

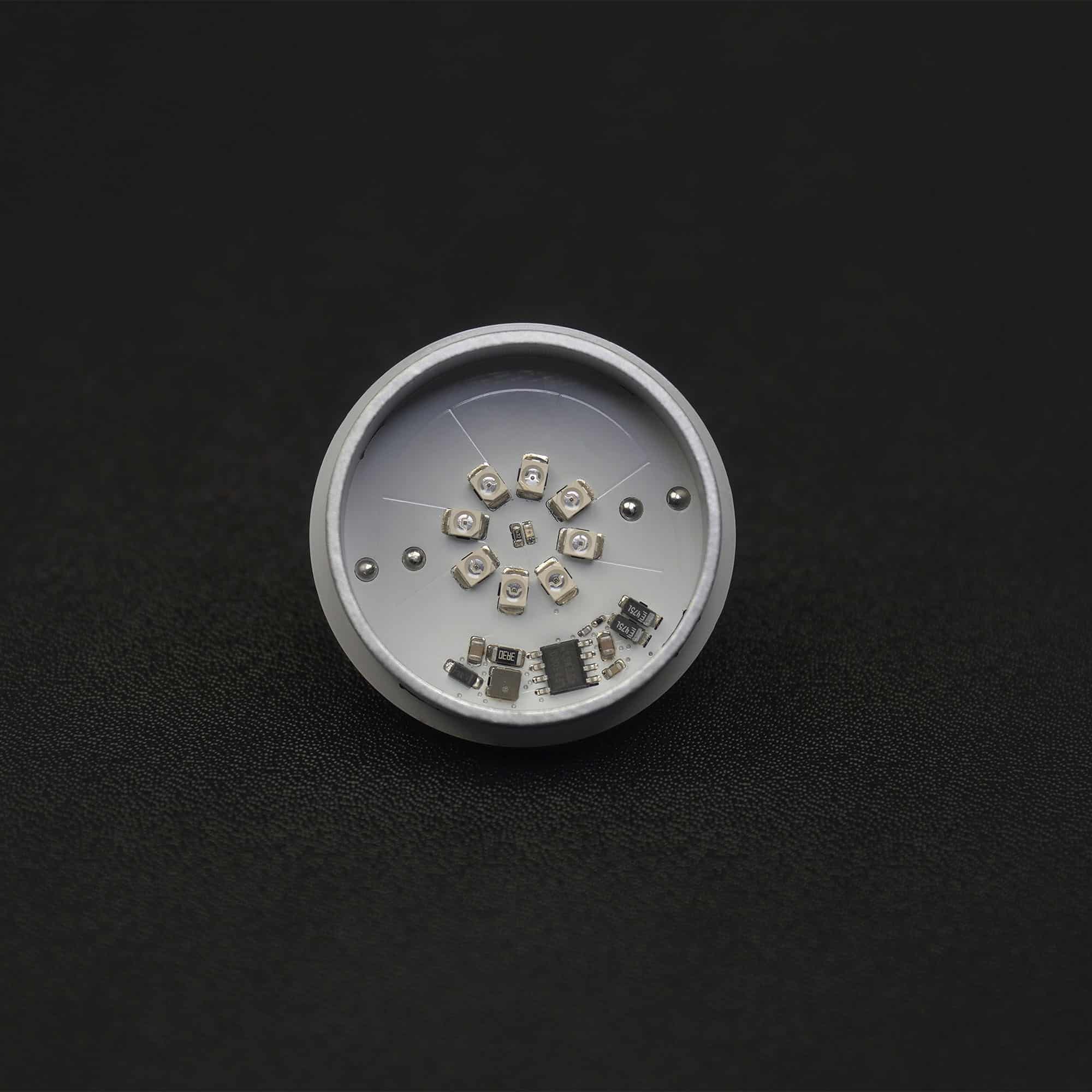

The tracker gets its position relative to an infrared (IR) layout. The ceiling tracking area equipment is supplied as separate ceiling IR markers. The ceiling markers are then embedded in the ceiling (e.g. like an Armstrong suspended grid ceiling), wired, and connected to the power supply (wires and power supply are not included).
The kit for the ceiling tracking area comes with 12 markers.
Recommendations for the wires: 1mm² copper conduction wires (17 AVG).
Recommendations for the power supply: 18V power supply, calculate the output current with the formula Nx0.06×3, where N is the number of markers.
